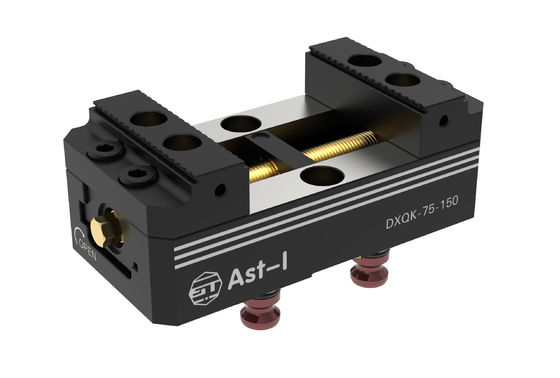

Riser Self Centering Vise Reversible Dovetail Vise Jaws For 5 Axis Cnc Working

Manual Precision Self Centering Vise Riser For 5axis Cnc Working 75150

A new self centering vise, the claw can be disassembled and replaced separately, with high hardness and good wear resistance, which is suitable for electrode processing and mechanical parts processing.

Centering repeatability of within 0.02mm

• The Left- and Right- handed leadscrew positions your workpiece in the center of the vise with exceptional accuracy.

Low Profile, Small Footprint

• AST vises are highly compact; easily reach five sides of the workpiece, even for oddly-shaped parts

Gripper Teeth + Dovetail

• Serrated teeth on each jaw provides maximum grip on stock less than HRC 35-37. For harder material, the built-in dovetail provides exceptional clamping force without the need for a stamping machine and with even less torque.

Simple Design

• Quickly reverse jaws / change jaws on the fly. Our simple bolt-on jaw design eliminates the need to take apart the vise to change jaws.

Built Tough

• All vises are built in hardened alloy steel, capable of withstanding the harsh machining environment.

Made for Soft Jaws

• Quickly remove the standard hard jaws and replace them with machinable jaws. Soft jaws are used for secondary operations + finishing work.

Product Description:

Size:75x150x56m
Clamping range:0-121mm
Clamp body width:75mm
Maximum torque:60Nm
Weight:3Kg

Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty:1 years

5.max clamping range:0-77mm
