Thông tin chi tiết sản phẩm:
|
| Tên: | Đồ gá gia công CNC | Vật liệu: | Thép |
|---|---|---|---|
| tính lặp lại: | Trong vòng 0,005mm | Đặc trưng: | có thể trao đổi linh hoạt |
| Phụ kiện tiêu chuẩn: | 4 đinh kéo | mô-men xoắn: | 22 KN |
| Làm nổi bật: | Repeatability 5 Axis Clamping,5 Axis Clamping Exchangeable,5 Axis Clamping System 0.005mm |
||

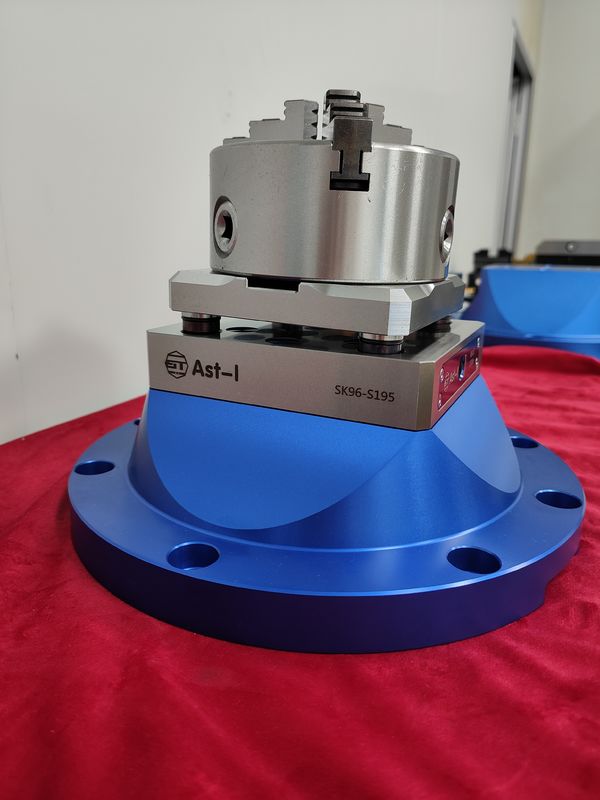

The four-hole zero-point locator is a positioning tool that can quickly exchange fixtures and fixed
fixtures, The standard installation method enables tools such as vices, pallets, chucks, etc, to be
quickly and repeatedly changed between various cnc machine tools.
FEATURES:
• Quick-Change Base Plate is suitable for 4 and 5 Axis usage, either in horizontal or vertical machining.
• Suitable for 1301551/130250/150250 series Self Centring Vise.
• Repeatability: within 0.005mm •
Material: Alloy Steel
• Standard Accessory: 4 Pull Studs.
No need to disassemble and calibrate time.
Size:150x128x30mm
Repeat Position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: steel
Weight:3.6Kg
