Zero Point Clamping Quick-Change System Riser For 5 Axis Cnc Machining SK96-80L

zero point clamping quick-change pallet syste

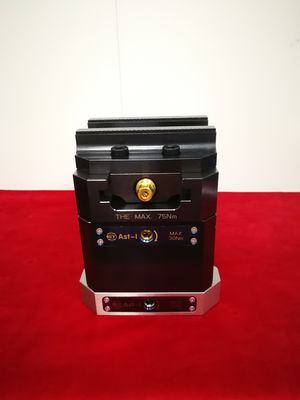

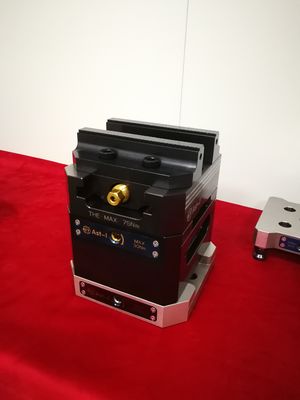

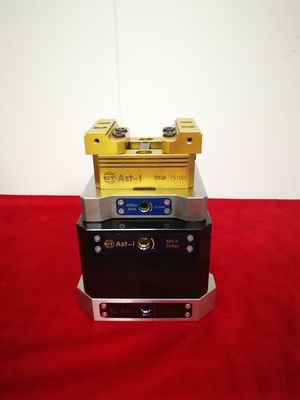

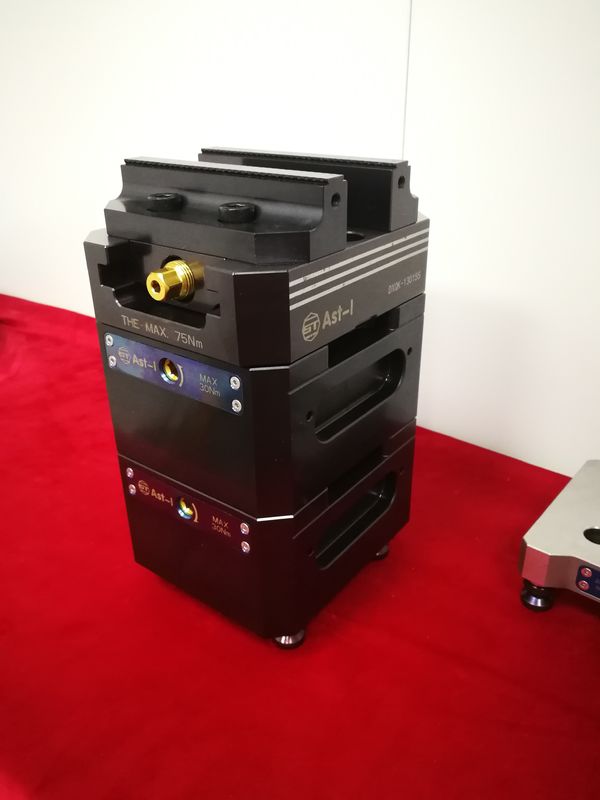

A riser improves accessibility in 5-sided machining and can either be mounted directly and firmly on the machine table or set up and removed on a zero-point plate. It is available in round and rectangular versions in heights of 80 and 100 mm. The zero-point plates are pinned, aligned and mounted to the riser via bushings.

Flexible, precise and extremely durable – with the modular Quick•Point system set-up times are reduced to a minimum.

Details: 96 style uprise vise

Size:150mmx135mmx80
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material:  hard steel
Weight:6.0Kg

FAQ

1. How To Order?
Step 1: please tell us what model and quantity you need;
Step 2 :then we will make a PI for you to confirm the order deta;
Step 3 : when we confirmed everything, arrange the payment;

Step 4: finally we deliver the goods within the stipulated time.

2. About precision
All zreo position system have a repeat positioning accuracy within 0.005mm

3. Delivery Time
Small Order: in stock normally,deilver goods once payment received.
Large Order: 5-7 days
OEM Order: 7-15days

4. OEM logo Service
we supply service of marked logo

5. After-sales Service
a. chucks warranty:1 year
b. If you find any defective accessories in the first order, we will give you the new parts for free to replace in the next orr,
the fact is that our products fraction defective is lower than 1%.

Unlock Method:
Pneumatic/manual
