Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture
Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture
Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

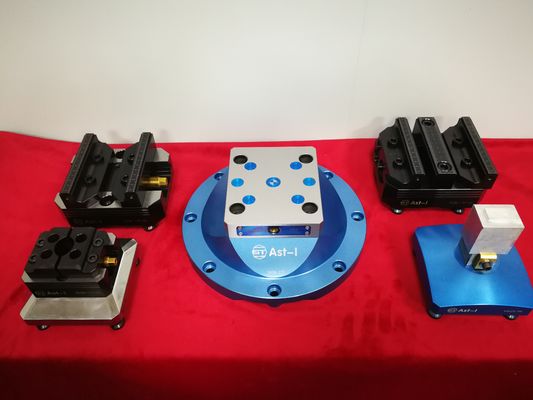

Hình ảnh lớn :  Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: AST
Số mô hình: DXQ150250
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
chi tiết đóng gói: bao bì carton 205 * 180 * 124mm
Thời gian giao hàng: 5-8 ngày làm việc
Điều khoản thanh toán: T/T
Khả năng cung cấp: 5-7Ngày làm việc sau khi xác nhận đơn hàng
Tiếp xúc

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Sự miêu tả
CNC: êtô 5 trục Người mẫu: 150250
Kích cỡ: 150x250x94m Vật liệu: Thép hợp kim
bán trước cung cấp: cung cấp tập tin 3d Màu sắc: Đen
Làm nổi bật:

240mm Axis Fixtures

,

Axis Fixtures 100Nm

,

Stainless Steel 5 Axis Fixture

 Compact Multi-Power 5-Axis Self Centering Vise For Cnc Milling Machine 150250

  • Extremely High Accuracy and Repeatability
  • Special MULTI-POWER design enhances clamping force of 5000KG
  • Suitable for CNC 5-Axis Machining Centers, horizontal and vertical CNC Machining Centers
    • 1. Compact design with big jaw opening, which enhances machine space utilization.
    • 2. Vise jaws are made of High quality Tool Steel and Hardened to achieve HRC 55 , which makes vise clamp the workpieces easily and firmly.
    • 3. Vise body is made of alloy steel and its slideways are hardened to HRC 52 , which makes the vise tensile strength with high precision accuracy.
    • 4. The patented MULTI-POWER SYSTEM is built of high grade BEARING STEEL which doubles the clamping force. Adjustable clamping force 5000kg. With this special patented system the pressure is more consistent and eliminates oil leakage and maintenance problems associated with Hydraulic Vises.
    • 5. Special Leadscrew Covers protect Leadscrew from swarf and avoid any possible damage to internal parts.

Product Description:



Size: 150x250x94m
Clamping range: 0-240mm
Clamp body width: 150mm
Maximum torque: 100Nm
Weight: 16Kg

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 0



Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty: 1 years

5. max clamping range: 155mm

Product Name
self centering vise DXQ150250
Material
stainless steel
Used
Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage
Easy to use,precise clamping.

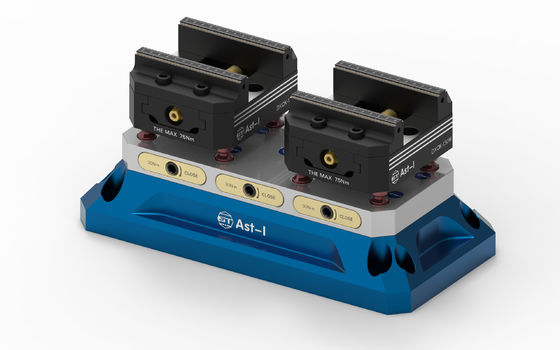

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 1Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 2Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 3Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 4Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 5Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 6
