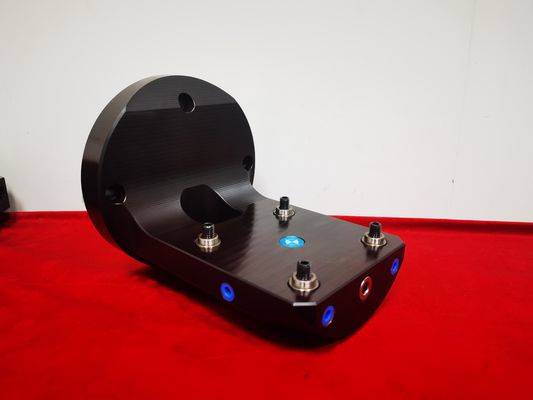

Cnc Working 5 Axis Fixture for Flexible Exchange in Cnc Workingship

The Zero Point Fixture is a versatile and essential tool for any machining operation, specifically designed for CNC machines. With its Acc: 96 Pull Stud, this fixture ensures secure and precise positioning for your workpieces, making it ideal for a wide range of machining tasks.

Designed to work seamlessly with CNC machines, the Zero Point Fixture is compatible with various machining setups, including dovetail fixture CNC applications. Its size of 200mm × 200mm provides ample space for accommodating different workpiece sizes and shapes, allowing for efficient and accurate machining processes.

The package includes 1 × Zero Point Fixture and 4 × Clamps, offering everything you need to set up your workpiece securely and efficiently. The Mounting Type of T-Slot makes it easy to install and secure the fixture on your CNC machine, ensuring stability during machining operations.

Whether you are working on complex 5-axis machining tasks or simple milling operations, the Zero Point Fixture is the perfect solution to enhance your productivity and machining accuracy. Its robust design and reliable performance make it a valuable addition to any machining workshop.

The AST SK96-205 Zero Point Fixture is a versatile tool used for precise workholding in various machining applications. This fixture, originating from China, is designed to offer exceptional repeatability within 0.005mm, making it ideal for high-precision machining tasks.

One of the key features of the SK96-205 fixture is its flexible exchange capability, allowing users to quickly and easily swap out workpieces without compromising accuracy. This makes it a valuable tool for businesses looking to improve efficiency and reduce setup times.

• Dovetail Fixture CNC: The SK96-205 fixture is well-suited for use in CNC machining operations that require a secure and repeatable workholding solution. Its ability to maintain a repeat accuracy within 0.005mm ensures consistent results for intricate machining tasks.
• 3 Axis Vise: This zero point fixture is compatible with 3-axis vises, allowing for multi-sided machining operations with high precision. Whether working on complex parts or simple components, the SK96-205 provides the stability and accuracy needed for optimal results.
• 5th Axis Self Centering Vise: For applications that demand advanced workholding capabilities, the SK96-205 fixture can be used in conjunction with a 5th axis self-centering vise. This setup enables users to machine parts from multiple angles with minimal setup time, thanks to the quick and reliable zero point system.

The standard accessory package for the SK96-205 fixture includes 4 pull studs, ensuring compatibility with a wide range of machining setups. Additionally, users have the option to utilize 4 bolts as additional accessories, providing flexibility in securing workpieces of varying sizes and shapes.

Customize your Zero Point Fixture with AST's Product Customization Services:

• Brand Name: AST
• Model Number: SK96-205
• Place of Origin: China
• Standard Accessory: 4 Pull Studs
• Repeatability: Within 0.005mm
• Acc: 96 Pull Stud
• Mounting Type: T-Slot

Enhance your 5 axis clamping system with precision fixtures and optimize your setup with the 4 axis vise for improved performance.
